Design Features
√ Ductile iron fully lined casing provides durability, strength and long service life.

√ Multi-stage high pressure operation to 750 psi.

√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.

√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.

√ Large, open internal passages designed to maximize wear life and lower operating costs.

√ Thick elastomer and alloy liners provide superior corrosion resistance and maximum wear life.

√ Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.

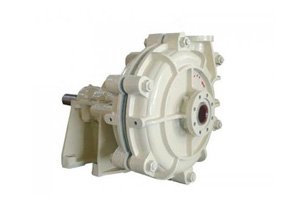

RT® THH High Head Slurry Pumps Performance Parameters:


Model	Max. Power (kw)	Clear Water Performance					Impeller
		Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Vane No.	Impeller Dia.
1.5/1C-THH	30	16.2-34.2	25-92	1400-2200	20	2-5.5	5	330
3/2D-THH	60	68.4-136.8	25-87	850-1400	47	3-7.5	5	457
4/3E-THH	120	126-252	12-97	600-1400	50	2-5	5	508
6/4F-THH	560	324-720	30-118	600-1000	64	3-8	5	711
8/6S-THH	560	468-1008	20-94	500-1000	65	4-12	5	711

  RT^® THH High Head Slurry Pumps Applications:   THH high head slurry pumps widely used for wet crushers, SAG mill discharge, ball mill discharge, rod mill discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, phosphoric acid, coal, flotation, sugar beets, process chemical, pulp and paper, FGD, waste water etc.     * RT^® is a registered trademark and does not represent or is not in any way affiliated with Warman^® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps. * RT^® TTHH high head slurry pumps and spares are only interchangeable with Warman^® HH high head slurry pumps and spares. * This document is the property of RT^® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
