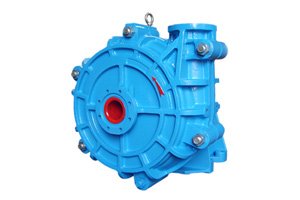

RT® 3/2 D THH High Head Slurry Pump Design Features:

• High head, high pressure centrifugal end suction slurry pump design.
• Ductile iron fully lined casing provides durability, strength and long service life.
• Hyper wear resistance materials for longtime worklife.
• Multi-stage high pressure operation allowed.
• Heavy duty construction with through-bolt design provides ease of maintenance and results in less down time
• Large diameter, slow turning, high efficiency impellers result in maximum wear life and lower operating costs
• Large, open internal passages maximize wear life and lower operating costs
• Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.

 RT® 3/2 THH High Head Slurry Pumps Performance Parameters:


Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller
		Liner	Impeller	Capacity Q (m3/h)	Head (m)	Speed (rpm)	Eff. η (%)	NPSH (m)	Vane No.	Impeller Dia.
3/2D-THH	60	M	M	68.4~136.8	25-87	850~1400	47	3-7.5	5	457

RT® THH High Head Slurry Pumps Applications:



THH high head slurry pumps widely used for wet crushers, SAG mill discharge, ball mill discharge, rod mill discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, phosphoric acid, coal, flotation, sugar beets, process chemical, pulp and paper, FGD, waste water etc.



* RT® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.

* RT® 3/2D-THH high head slurry pumps and spares are only interchangeable with Warman® 3/2D-HH high head slurry pumps and spares.
