Design Features:



√ Ductile iron fully lined casing provides durability, strength and long service life.

√ Multi-stage high pressure operation to 750 psi.

√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.

√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.

√ Large, open internal passages designed to maximize wear life and lower operating costs.

√ Thick elastomer and alloy liners provide superior corrosion resistance and maximum wear life.

√ Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.

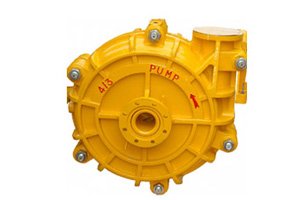

RT® 4/3E-THH High Head Slurry Pumps Performance Parameters:


Model	Max. Power (kw)	Clear Water Performance					Impeller
		Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Vane No.	Impeller Dia.
4/3E-THH	120	126-252	12-97	600-1400	50	2-5	5	508

RT® 4/3E-THH High Head Slurry Pump Applications:



Mining and mineral processing
Highly abrasive slurries
Mine refuse and tailings
Industrial processing
Coal and power plant ash
Sand and gravel
Mining duty abrasive slurries
Pulp & paper

Lime slurry
Alumina
Fertilizer
Acid Neutralization
In-plant slurry transfer pumps
Dyes & Intermediate
Solvent Transfer
Pharmaceutical & Chemicals

* RT® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.

* RT® 4/3E-THH high head slurry pumps and spares are only interchangeable with Warman® 4/3E-HH high head slurry pumps and spares.

* This document is the property of RT® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
