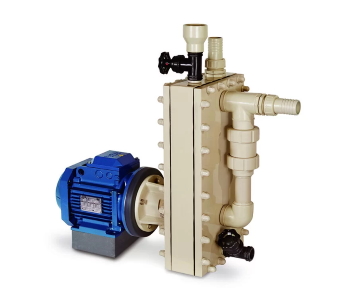

PA SELF-PRIMING PUMPS

SELF-PRIMING PUMPS WITH MECHANICAL SEAL. FOR PUMPING AGGRESSIVE LIQUIDS, INDUSTRIAL FLUIDS, ACID SOLUTIONS AND CHEMICALS.

Corrosion-resistant chemical pumps.
For installation above the level of the liquid.
Maximum suction lift: 4 m.
Maximum flow rate: 280 l/min.
Maximum head: 15 m w.c.
Plastic construction materials: PP, PVC, PVDF.
With no metal parts in contact with aggressive liquids.
Mechanically sealed for chemical applications

ÜCRETSİZ TEKLİF AL

TECHNICAL INFORMATION

Pump performance curves - PA self-priming pumps

	Q max l/min	H max m w.c.	kW	Suction lift	Materials
PA20	60	5	0.25 - 0.37	1.5 m	PP - PVC
PA30	160	14	1.1 - 1.5	3 m	PP - PVC
PA40	280	16	1.5 - 2.2	4 m	PP - PVC

Savino Barbera also manufactures custom pumps outside this production range: the table does not indicate all the possible combinations of impellers and motors. It is possible to install various types of impeller and motors with non-standard powers, voltages, frequencies and protections. Please contact our technical department for any special requirements.
