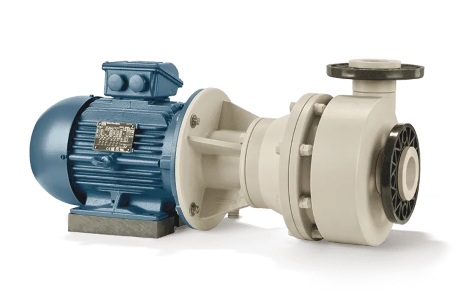

OA HORIZONTAL PUMPS

CORROSION-RESISTANT PLASTIC PUMPS. WITH MECHANICAL SEAL AND NON-CLOGGING IMPELLERS, IDEAL FOR PUMPING AGGRESSIVE LIQUIDS OR EVEN VERY DIRTY INDUSTRIAL FLUIDS (COARSE SOLIDS, FIBRES, FILAMENTS, ETC.).

Corrosion-resistant chemical pumps.
Maximum flow rate: 32 m³/h.
Maximum head: 20 m w.c.
Plastic construction materials: PP, PVC, PVDF.
Mechanically sealed for chemical applications.
With no metal parts in contact with aggressive liquids.
Lots of internal space and recessed non-clogging impeller.

ÜCRETSİZ TEKLİF AL

TECHNICAL INFORMATION

pump-performance-curves-oa-chemical-pumps

	Q max m³/h	H max m w.c.	kW	rpm 50 Hz	Ø impeller
OA20	6.2	7	0.37 - 0.55	2900	80 mm
OA30	12	10	1.5 - 2.2	2900	120 mm
OA40	23	18	2.2 - 3	1450	130 mm
OA50	44	20	4 - 5.5	2900	155 mm

Savino Barbera also manufactures custom pumps outside this production range: the table does not indicate all the possible combinations of impellers and motors. It is possible to install various types of impeller and motors with non-standard powers, voltages, frequencies and protections. Please contact our technical department for any special requirements.
