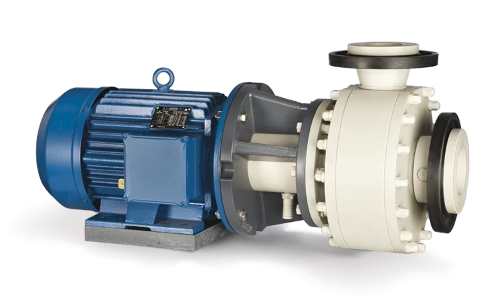

OP HORIZONTAL PUMPS

CORROSION-RESISTANT CHEMICAL PUMPS. WITH MECHANICAL SEAL. FOR AGGRESSIVE LIQUIDS, BOTH ACID AND ALKALINE, CLEAN INDUSTRIAL FLUIDS AND THOSE WITH VARIOUS KINDS OF IMPURITIES. IDEAL FOR CONTINUOUS SERVICES AND HEAVY-DUTY OPERATIONS.

Maximum flow rate: 200 m³/h.
Maximum head: 42 m w.c.
Thermoplastic construction materials: PP.
With no metal parts in contact with chemical liquids.
Mechanical seal made of silicon carbide (SiC).
Pumps for under flooded installations.
Suction/delivery: flange (DN80 or DN100).

ÜCRETSİZ TEKLİF AL

TECHNICAL INFORMATION

Pump performance curves - OP chemical pumps

	Q max m³/h	H max m w.c.	kW	rpm 50 Hz	Ø impeller
OP80A	100	36	15 - 18.5	2900	170 mm
OP80B	110	42	18.5 - 22	2900	180 mm
OP80D	100	16	7.5 - 9.2	1450	220 mm
OP80E	115	45	18.5 - 22	2900	190 mm
OP125D	145	24	15 - 18.5	1450	270 mm
OP125E	225	23	15 - 18.5 - 22	1450	270 mm

Savino Barbera also manufactures custom pumps outside this production range: the table does not indicate all the possible combinations of impellers and motors. It is possible to install various types of impeller and motors with non-standard powers, voltages, frequencies and protections. Please contact our technical department for any special requirements.
