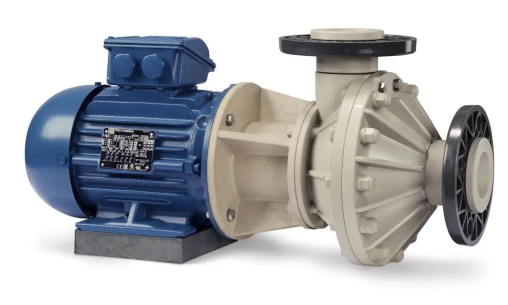

OMA HORIZONTAL PUMPS

CORROSION-RESISTANT PLASTIC CENTRIFUGAL PUMPS. WITH MECHANICAL SEAL. SUITABLE FOR PUMPING AGGRESSIVE LIQUIDS, INDUSTRIAL FLUIDS (INCLUDING CHARGED FLUIDS), CHEMICALS, PROCESSING WATERS AND ACID SOLUTIONS.

Corrosion-resistant chemical pumps.
Maximum flow rate: 90 m³/h.
Maximum head: 55 m w.c.
Plastic construction materials: PP, PVC, PVDF.
With no metal parts in contact with aggressive liquids.
Mechanically sealed for chemical applications.
For under flooded installations.
Close-coupled design, ideal for reduced industrial spaces.

ÜCRETSİZ TEKLİF AL

TECHNICAL INFORMATION

pump-performance-curves-oma-chemical-pumps

	Q max m³/h	H max m w.c.	kW	rpm 50 Hz	Ø impeller
OMA20A	4	6.5	0.25 - 0.37	2900	82 mm
OMA20C	4.5	8	0.25 - 0.37	2900	85 mm
OMA30A	120	10	0.55 - 0.75	2900	95 mm
OMA30AA	13.5	13	0.75 - 1.1	2900	105 mm
OMA30B	14	16	1.1 - 1.5 - 2.2	2900	120 mm
OMA40A	23	18	1.1 - 1.5 - 2.2	2900	128 mm
OMA40C	14.5	19	1.5 - 2.2	2900	128 mm
OMA40D	8	4.5	0.37 - 0.55	1450	128 mm
OMA50A	32	20	2.2 - 3	2900	150 mm
OMA50B	40	25	3 - 4	2900	165 mm
OMA50C	13.5	33	3 - 4	2900	165 mm
OMA50D	23	7	1.1 - 1.5	1450	165 mm
OMA70A	54	25	4 - 5.5	2900	180 mm
OMA70C	16	42	4 - 5.5	2900	180 mm
OMA80A	52	32	5.5 - 7.5 - 9.2	2900	210 mm
OMA80B	81	41	9.2 - 11	2900	217 mm
OMA80C	15	45	5.5 - 7.5 - 9.2	2900	195 mm
OMA100A	90	43	11 - 15	2900	220 mm
OMA100C	27	55	11 - 15	2900	215 mm
OMA100D	73	10	4 - 5.5	1450	220 mm

Savino Barbera also manufactures custom pumps outside this production range: the table does not indicate all the possible combinations of impellers and motors. It is possible to install various types of impeller and motors with non-standard powers, voltages, frequencies and protections. Please contact our technical department for any special requirements.
