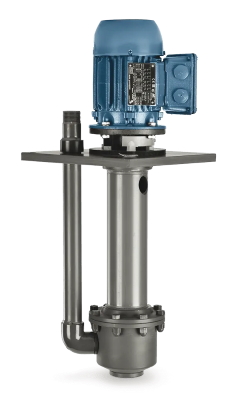

BS VERTICAL PUMPS

CORROSION-RESITANT PLASTIC PUMPS WITHOUT BUSHINGS. FOR PUMPING SLIGHTLY ABRASIVE LIQUIDS, LIQUIDS CONTAINING SUSPENDED SOLIDS OR FLUIDS THAT TEND TO CRYSTALLIZE OR FORM SCALE.

Corrosion-resistant chemical pumps.
Maximum flow rate: 55 m³/h.
Maximum head: 30 m w.c.
Thermoplastic construction materials: PP, PVC, PVDF.
With no metal parts in contact with chemical liquids.
Made in four standard lengths: 400, 550, 700, 900 mm.
Cantilever shaft with no bushings or bearings (cantilever pumps).

ÜCRETSİZ TEKLİF AL

TECHNICAL INFORMATION

Pump performance curves - BS chemical pumps

	Q max m³/h	H max m w.c.	kW	rpm 50 Hz	length
BS20A	5	6	0.25 - 0.37	2900	400 mm
BS30A	10	10	0.55 - 0.75	2900	550 mm
BS30B	10	10	1.1 - 1.5	2900	550 mm
BS40A	15	18	2.2	2900	550 mm
BS50A	20	18	2.2 - 3	2900	700 mm
BS50B	24	18	3 - 4	2900	700 mm
BS70A	37	25	5.5 - 7.5	2900	900 mm
BS80A	55	31	7.5 - 9.5	2900	900 mm

Savino Barbera also manufactures custom pumps outside this production range: the table does not indicate all the possible combinations of impellers and motors. It is possible to install various types of impeller and motors with non-standard powers, voltages, frequencies and protections. Please contact our technical department for any special requirements.
