SERO Model SRZS™

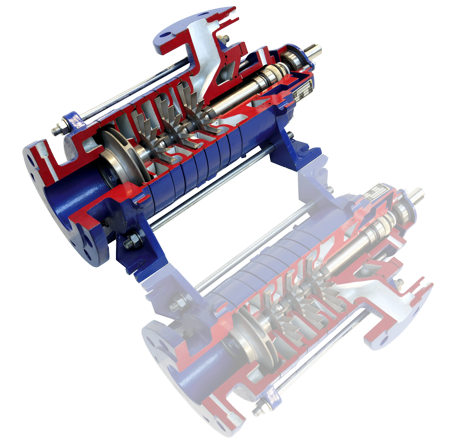

Specialty Pumps Engineered for a Wide Range of Industrial Services Model SRZS™ is a proven state-of-the-art multi-stage, radially split segmented pump that combines the functionality of a low NPSH first stage impeller with the performance of a side channel design.

Product Brochure
IOM

ÜCRETSİZ TEKLİF AL

Features

Exceptional Differential Pressures Developed at 1750 RPM
Hydraulic Flexibility – Low Flows with High Head
Steep Performance Curves for Precise System Control
Ability to Pump Vapor Laden (up to 50%) Process Fluids
Low NPSH Requirements to Prevent Cavitation
Self-priming
Multiple Sealing Options
Modular Construction with Standardized Parts
Field Interchangeability with Existing Units
“Crafted In Germany” for Increased Reliability and Lowest Cost of Ownership

Service & Application

Low Specific Gravity Process Fluids
Liquids with High Vapor Pressure
Liquid Gas Pumps (LPG)
Refrigeration System Pumps
Biodiesel Pumps
Methanol Pumps
Urea Pumps
Aerosol Propellant Pumps
Tank Farm Transfer
Underground Storage Pumps
Light Hydrocarbon Pumps
Condensate Pumps
Heat Transfer (Ethylene Glycol) Pump

Size	110	220	330	440	550	660
Number of Stages	1 TO 8
SUCTION FLANGE INCHES (MM)	1 1/2 (40)	2 1/2 (65)	2 1/2 (65)	3 (80)	4 (100)	4 (100)
DISCHARGE FLANGE INCHES (MM)	3/4 (20)	1 1/4 (32)	1 1/4 (32)	1 1/2 (40)	2 (50)	2 1/2 (65)
RPM (60 HZ)	1750
MAXIMUM WORKING PRESSURE PSI (BAR)	580 (40)
CAPACITY RANG, GPM (m3/h)	6-12 (1.4-2.9)	13-24 (2.9-5.4)	26-40 (5.8-9)	47-64 (10.6-14.5)	76-106 (17.3-24.1)	130-186 (29-42.2)
HEAD RANGE @ MIN FLOW, FT (m)	100-740 (30-225)	140-1080 (40-330)	110-790 (35-240)	105-800 (32-250)	130-1000 (40-300)	160-1150 (50-350)
TEMPERATURE RANGE ºF (ºC)	-40º – 392º (-40º – 200º)
MAXIMUM VISCOSITY SSU (CST)	1050 (230)
MAXIMUM ALLOWABLE ENTRAINED VAPOR	50%
