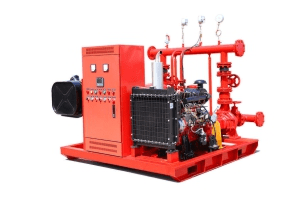

Dual - Power Fire Pump
XBC series dual power diesel engine fire pump sets are researched and developed in strictly accordance with the national standard GB6245-2006«Fire Pump Performance Requirements and Test Methods»and the American Fire Protection Association standard NEPA20«Installation of Centrifugal Fire Pumps» and other standards., at the same time, it is also developed according to market demand and usage characteristics.
When there is a fire in the building, the power supply system will faulty, and the electric fire pump cannot be put into operation, the diesel emergency fire pump will automatically be put into operation to ensure the normal operation of fire fighting and guarantee the safety of the people's lives and property.
The diesel engines of the pumps are made of domestic or imported high-quality products, with the characteristics of good starting, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is an professionally advanced and reliable fire fighting equipment.
Performance Parameter
Flow Range: 10-200L/S
Pressure Range: 0.3-5.0Mpa
Speed: 1500r/min 1800r/min 2200r/min 3000r/min
Environment Atmospheric Pressure: >90KPa
Environment Temperature: 5?~40?
Relative Air Humidity: ≤80%
Application Scope
a. Various the places of fire hydrants and sprinkler fire main pumps.
b. Various the places of fire-fighting pressurizing and stabilizing pumps.
c. Fire-fighting systems for various villas and communities.
d. Fire-fighting water systems for industrial and civil buildings.
e. Various oil depots, oil product loading and unloading docks, logistics parks and other occasions with high fire protection requirements.
Conditions of Use
a. Ambient temperature: ±4? -±40?.
b. When the ambient temperature of the working place increases by 5?, its power will be reduced by 1% (based on 25?).
c. The reference altitude is 91.4m, and the reference ambient atmospheric pressure is 100kPa, and it should be mentioned if the altitude exceeds 100m.
d. Relative humidity ≤80% (20?), 90% allowed outdoors (it should be mentioned when ordering for outdoor installation, outdoor structure can be selected, protection level P55), no water condensation
Working Scope
a. Water Supply Pressure: 0.2mpa-2.5mpa (20-250 meters)
b. Flow Range: 5-1200L/S.
c. Power: 3KW-2000KW.
d. Speed Range: 1500-3200r/min
e. Allowed Medium: drinking water, chilled water, fire fighting water and other media that don't contain abrasive impurities or long fiber impurities, and don't chemically or mechanically corrode the pump.
f. The maximum allowable medium temperature is 70?, and the maximum environment temperature is 40C.
g. The maximum allowable working pressure is 1.6mpa, and the maximum inlet pressure is 0.6mpa.
