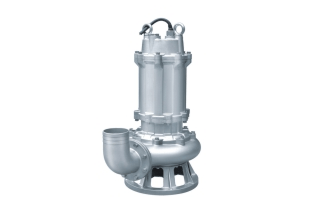

WQP Pump

WQP Stainless Steel Submersible Sewage Pump is a new generation pump product successfully combined foreign advanced technology with domestic water pumps' features.It has the unique features of perfect energy-saving effects,anti-entanglement, non-blocking, automatic installation and automatic control. Moreover, It also has a unique effect in discharging solid particles and long-fiber sewage.

ÜCRETSİZ TEKLİF AL

Application
The pump can be widely used in the areas of Chemical, Petroleum, Mining, Paper Industry, Pharmaceutical Industry,Cement Plant,Steel Plant,Power Plant,Coal Processing Industry and Sewage Discharge from Municipal Sewage Treatment Plant, Municipal Engineering and Construction Sites, etc. Moreover it also can be used for Clean Water and corrosive Medium.

Product Features
1. The pump has the special design of large flow channel anti blocking hydraulic component, which has greatly improved the passing ability of dirty products, it can pass through the fibre length which 5 times of the pump's outlet diameter and the solid particles of 50% of the pump outlet diameter.

2. Reasonable design, reasonable supporting motor, high efficiency, low noise, perfect energy saving effect.

3. The mechanical seal adopts a new type of double channel hard corrosion resistant tungsten carbide, and ensure the pump can operate safely and continuously over 8000 hours.

4. The pump has compact structure, small volume, low noise, perfect energy saving effect, convenient for maintenance, and the pump doesn't need to build a pump room, it can work directly when submerging in the water, which has greatly reduced the project costs.

5. There is an oil-water probe in the pump oil chamber. When the mechanical seal on the pump side is damaged, water enters the oil chamber and the probe generates a signal to protect the pump.

6. It can be equipped with a fully automatic control cabinet according to different users need, which is a great automatic protection for water leakage, electric leakage, overloaded and over-temperature and improves the product safety and reliability.
7. Equipped with the installation system of double guide coupling rail automatic, it brings great convenience for installation and maintenance, and people don't need to enter the sewage sump.

8. The float switch can automatically control the start and stop of the pump according to the required liquid level. It does not need to be supervised by a special person, and it is extremely convenient to use.

9. It can be used on all the heads scope and ensure the motor is not be overloaded.

10. According to the working condition,the motor can adopt a water-jacketed external third-party circulating cooling system, which can ensure the safe operation of the electric pump in an anhydrous (dry) state.

11. According to different working conditions, there are two kinds installation methods, fixed automatic coupling installation and moveable installation freely.

performance parameter

WQP Pump	Flow (m3/h)	Head (M)	Motor Power (kw)	diameter mm	Speed (r/min)	Efficiency (%)	range of lift(m)
25WQ7-8-0.75P	7	8	0.55	25	2900	45	3-8
25WQ8-22-1.1P	8	22	1.1	25	2900	45	10-22
32WQ8-12-0.75P	8	12	0.75	32	2900	48	7-12
32WQ12-15-1.1P	12	15	1.1	32	2900	45	7-15
40WQ15-15-1.5P	15	15	1.5	40	2900	48	6-15
40WQ15-30-2.2P	15	30	2.2	40	2900	54	15-30
50WQ20-7-0.75P	20	7	0.75	50	2900	51	3-7
50WQ10-10-0.75P	10	10	0.75	50	2900	52	4-10
50WQ20-15-1.5P	20	15	1.5	50	2900	53	6-15
50WQ15-25-2.2P	15	25	2.2	50	2900	54	10-25
50WQ18-30-3P	18	30	3	50	2900	55	15-30
50WQ40-15-4P	40	15	4	50	2900	55	8-15
50WQ25-32-5.5P	25	32	5.5	50	2900	55	17-32
50WQ20-40-7.5P	50	20	7.5	50	2900	58	20-40
65WQ25-15-2.2P	25	15	2.2	65	2900	50	6-15
65WQ37-13-3P	37	13	3	65	2900	57	6-13
65WQ25-30-4P	25	30	4	65	2900	61	15-30
65WQ30-40-7.5P	30	40	7.5	65	2900	56	20-40
65WQ35-50-11P	35	50	11	65	2900	45	35-50
65WQ35-60-15P	35	60	15	65	2900	65	40-60
80WQ60-13-5.5P	60	13	5.5	80	2900	67	7-13
80WQ40-7-2.2P	40	7	2.2	80	1450	59	3-7
80WQ43-13-3P	43	13	3	80	2900	70	5-13
80WQ40-15-4P	40	15	4	80	2900	61	6-15
80WQ65-25-7.5P	65	25	7.5	80	2900	63	12-25
100WQ80-10-4P	100	10	4	100	1450	65	4-10
100WQ100-15-7.5P	100	15	7.5	100	1450	68	8-15
100WQ110-10-5.5P	110	10	5.5	100	1450	66	5-10
100WQ80-20-7.5P	80	20	7.5	100	1450	65	10-20
100WQ100-25-11P	100	25	11	100	1450	70	10-25
100WQ100-30-15P	100	30	15	100	1450	65	12-30
100WQ100-35-18.5P	100	35	18.5	100	1450	68	15-35
125WQ130-15-11P	130	15	11	125	1450	72	7-15
125WQ130-20-15P	130	20	15	125	1450	75	10-20
150WQ145-9-7.5P	145	9	7.5	150	1450	76	4-9
150WQ180-15-15P	180	15	15	150	1450	69	5-15
150WQ180-20-18.5P	180	20	18.5	150	1450	72	8-20
150WQ180-25-22P	180	25	22	150	1450	78	12-25
150WQ130-30-22P	130	30	22	150	1450	78	15-30
150WQ180-30-30P	180	30	30	150	1450	78	15-30
150WQ200-30-37P	200	30	37	150	1450	73	13-30
200WQ300-7-11P	300	7	11	200	980	66	3-7
200WQ250-11-15P	250	11	15	200	1450	64	4-11
200WQ250-15-18.5P	250	15	18.5	200	1450	73	7-15
200WQ400-10-22P	400	10	22	200	1450	75	5-10
200WQ400-13-30P	400	13	30	200	1450	76	6-13
200WQ300-15-22P	300	15	22	200	1450	76	8-15
200WQ250-22-30P	250	22	30	200	1450	71	12-22
200WQ350-25-37P	350	25	37	200	1450	71	10-25
200WQ400-30-45P	400	30	45	200	1450	74	13-30
250WQ600-9-30P	600	9	30	250	980	78	3-9
250WQ600-12-37P	600	12	37	250	1450	76	5-12
250WQ600-15-45P	600	15	45	250	1450	73	6-15
250WQ600-20-55P	600	20	55	250	1450	73	8-20
250WQ600-25-75P	600	25	75	250	1450	71	12-25
300WQ800-12-45	800	12	45	300	980	74	5-12
300WQ480-15-45P	480	15	45	300	1450	66	7-15
300WQ800-15-55P	800	15	55	300	1450	73	8-15
300WQ600-20-55P	600	20	55	300	1450	73	10-20
300WQ800-20-75P	800	20	75	300	1450	75	11-20
300WQ950-20-90P	950	20	90	300	1450	76	11-20
300WQ1000-25-110P	1000	25	110	300	1450	76	12-25
300WQ1100-10-55P	1100	10	55	300	1450	73	4-10
350WQ1500-15-90P	1500	15	90	350	740	87	6-15
350WQ1200-18-90P	1200	18	90	350	980	85	8-18
