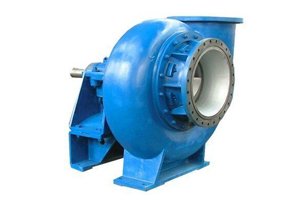

FGD Slurry Pump

RT® DT Series FGD Gypsum Slurry Pump is a single stage, single suction horizontal centrifugal pump. Mainly used as the circulating pump for absorbent tower in FGD system. It has the advantages of wide range capacity, high efficiency, better energy saving etc,The wetted parts are designed with the CFD fluid simulating analysis technology to ensure its high-efficiency operation. DT series FGD slurry pump is optimal pump type for transporting gypsum slurry, limestone slurry or other abrasive and corrosive medium in thermal power plants.

ÜCRETSİZ TEKLİF AL

Design Features
√ DT series FGD slurry pump wetted parts adopt the advanced flow simulation technology to guarantee reliable design and high operating efficiency.

√ Corrosion resistant and wear resistant metal and rubber materials for options.

√ The special integrated mechanical seal design is suitable to Thermal Power Plant Fuel Gas Desulphurization process.

√ The bearing at pump end is double-row taper roller bearing, and bearing at drive end is cylindrical roller bearing. The bearings are lubricated with oil to longer the service time.

√ Achieve highest efficiency all the time by adjusting the bearing components to alter the impeller position in pump chamber.

√ The pump can be disassembled without dismantling suction or discharge pipes.

RT® DT Series FGD Gypsum Slurry Pumps Performance Parameters:

Model	Capacity Q (m³/h)	Head H (m)	Speed n (r/min)	Max. particles (mm)	Max. power P (kw)	Weight (kg)
25DT-15	4.4-19.3	6.2-35	1390-2900	41.8	5.5	89
25DT-25	4.7-19.9	3.3-21.6	700-1440	38	4	107
40DT-17	4.6-23.4	9.2-44.6	1400-2900	52.4	7.5	127
40DT-19	7.8-34.9	12.3-57	1400-2930	58.8	15	173
40DT-20B	7.9-37	10.7-57.5	1400-2930	53	15	160
40DT-25	16.8-75	13.7-88.6	1400-2950	42.5	45	185
50DT-30	16-78	6.1-36.3	700-1480	48.5	18.5	210
50DT-40D	16-76	9.5-52	700-1480	45	30	320
65DT-30	21-99	7.0-35.6	700-1480	54.6	22	260
65DT-40	34-159	12.2-63.2	700-1480	62	55	490
80DT-36	41-167	8.9-47	700-1480	62.4	37	480
100DT-35	77-323	8.8-45.9	700-1480	42	75	550
100DT-40B	61-268	12-61	700-1480	29	75	620
100DT-45B	41-219	12.1-76.4	700-1480	24	90	800
150DT-40	122-503	11.2-61.2	700-1490	40	132	830
150DT-50	63-279	9.3-44.6	490-990	30	90	1470
150DT-50B	62-278	9.3-44.6	490-980	30	90	1470
150DT-55B	1139-630	11.3-53.7	490-990	56	132	1540
200DT-45B	138-645	35.7-31	490-990	51	90	1750
300DT-60	580-2403	8.9-53	490-989	96	400	2790
350DT-78	720-2865	11.6-51.1	400-740	104	500	3700
500DT-85	1036-4080	5.7-26.8	300-591	135	400	4500
600DT-82	1664-5600	5.2-27.8	300-595	152	500	4900
700DT-84	2157-7360	5.2-24.5	300-591	168	630	5420
800DT-90	3142-9700	6.0-28.7	300-592	181	900	5900

RT^® DT Series FGD Gypsum Slurry Pumps Applications: FGD system Mainly used as the circulating pump for absorption tower in FGD system Sulfuric acid phosphate fertilizer Transporting acid, liquor, sewage, water, fluoride acid containing silica, phosphate slurry and other media. Non-ferrous metal smelting Particularly used for lead, zinc, gold, silver, copper, manganese, cobalt, rare earth and other various hydrometallurgical acid, corrosive pulp slurry (filter press equipped with) electrolyte , sewage and other media delivery. Oil & Chemical Variety of sulfuric acid, hydrochloric acid, alkaline, clear liquid or slurry oils posts. Titanium dioxide, iron Pink production, various dyes, pigments production, non-metallic mineral processing industries. Chlor-alkali industries Hydrochloric acid, caustic electrolyte etc. Water Treatment Pure water, high pure water, wastewater (sewage leather, electroplating wastewater, electronics sewage, papermaking sewage, textile sewage, food waste water, sewage, sewage pharmaceutical industry, etc.). Iron and steel sulfuric acid system, hydrochloric acid positions, with impurities sewage. Coal industries Coal corrosive liquids, coal slurry transportation
