Design Features
√ Horizontal, cantilevered, centrifugal, single stage rubber lined slurry pump

√ Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

√ Wear resistant and anti-abrasion wet parts: R08, R26, R55, S02, S12, S21, S31, S42 rubber materials etc.

√ Easily replaceable liners: Liners are bolted to the casing.

√ Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.

√ Discharge direction can be positioned at intervals of 45 degrees.

√ Simple maintenance throat-bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.

√ Sealing type: packing seal, expeller sealing and mechanical seal.

√ Widely application: designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.

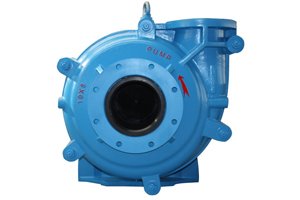

RT® 10/8 F AHR Rubber Lined Slurry Pump Performance Parameters:


Model	Max. Power (kw)	Materials		Clear water performance					Impeller Vane No.
		Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)
10/8F-AHR	260	Rubber	Rubber	540-1188	12-50	400-750	75	4-12	5

RT® 10/8 F AH Slurry Pumps Applications:



Rubber lined slurry pumps can be used in many applications, such as Pipeline transport, High velocity hydraulic transport, Mineral processing, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling. It is widely used in mining,plant and chemical factory.



QA&QC



Reliable and comprehensive quality assurance system ensures the excellent quality of our products. We have got the “International Standard” certification, manufactured according to GB, Department of superscript, and industry standards, we implement a comprehensive quality management during the entire process of production, accordance with the process file processing strictly, and a variety of detection methods etc.



We have met the requirements of GB3216-89 national Class B accuracy, computer test data monitoring of water test pumping station application. There are physical chemistry laboratory, metallographic analysis room in our factory, for testing material properties in different respects.



1. Quality Policy
Advocates quality is the life of enterprise, assiduous, the pursuit of excellence


2. Quality objectives
qualified products rate 99%, factory qualified pass rate: 100%


3. Quality Commitment
1) We will continue to improve the awareness of quality, implementing as GB/T19001-2000 quality assurance model standard, meeting technical requirements stipulated in the contract. We are not only discharge for the supplier host, but also for the quality of spare parts, external assistance products etc.
2) We promise the delivery time stipulated in the contract.



* RT® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.

* RT® 10/8 F THR rubber lined slurry pumps and spares are only interchangeable with Warman® 10/8F AHR rubber lined slurry pumps and spares.
