Design Features
√ Bearing assembly: large diameter shaft with short overhang contributes to long bearing life.

√ Liners: Easily replaceable liners are bolted, not glued to the casing for positive maintenance.

√ Casing: Casing halves of cast or ductile iron provide high operating pressure capabilities.

√ Impeller: Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

√ Throatbush: Wear is reduced and maintenance simplified by the use of tapered.

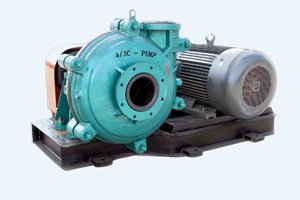

RT® 4/3 C AHR Rubber Lined Slurry Pump Performance Parameters:

Model	Max. Power (kw)	Materials		Clear water performance					Impeller Vane No.
		Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)
4/3C-AHR	30	Rubber	Rubber	79.2-180	5-34.5	800-1800	59	3-5	5

  RT^® Rubber Lined Slurry Pumps Applications:   Rubber lined slurry pumps are widely used for wet crushers, SAG mill discharge, ball mill discharge, rod mill discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, phosphoric acid, coal, flotation, sugar beets, process chemical, pulp and paper, FGD, waste water etc.   Note: * RT^® is a registered trademark and does not represent or is not in any way affiliated with Warman^® of Weir Minerals Group. All names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps. * RT^® 4/3 C THR rubber lined slurry pumps and parts are only interchangeable with Warman^® 4/3 C AHR rubber lined slurry pumps and parts. * This document is the property of RT^® Pump and can be neither reproduced nor disclosed to a third party without a written authorization
