Design Features
√ Bearing assembly – A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.

√ Liners – Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded rubber. Elastomer seal rings back all liner joints.

√ Casing – Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

√ Impeller – Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded rubber impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

√ Throatbush – Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

√ One-piece frame – A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

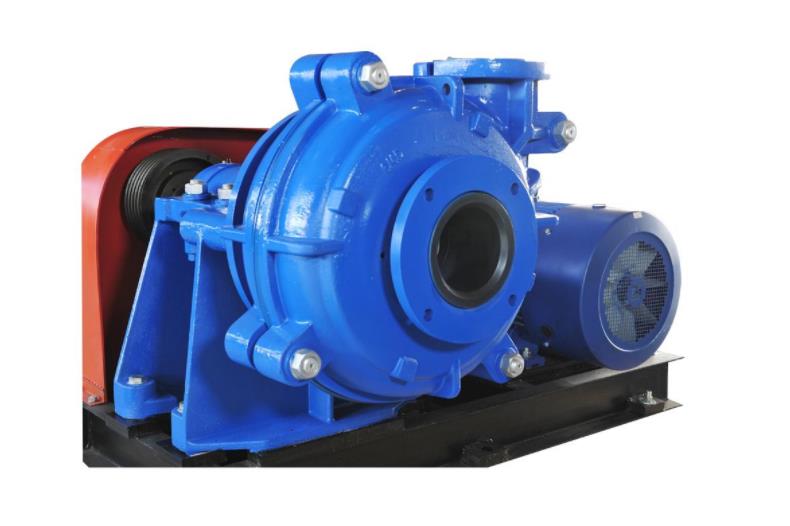

RT® 6/4 E AHR Rubber Lined Slurry Pump Performance Parameters:

Model	Max. Power (kw)	Materials		Clear water performance					Impeller Vane No.
		Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)
6/4E-AHR	120	Rubber	Rubber	144-324	12-45	800-1350	65	3-5	5

  RT^® Rubber Lined Slurry Pumps Applications:   √ Iron Ore Dressing Plant √ Copper Concentration Plant √ Gold Mine Concentration Plant √ Molybdenum Concentration Plant √ Potash Fertilizer Plant √ Other Mineral Processing Plants √ Alumina Industry √ Coal Washery √ Power Plant √ Sand Excavation √ Building Material Industry √ Chemical Industry √ Other industries   Note: * RT^® is a registered trademark and does not represent or is not in any way affiliated with Warman^® of Weir Minerals Group. All names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps. * RT^® 6/4 E THR rubber lined slurry pumps and parts are only interchangeable with Warman^® 6/4 E AHR rubber lined slurry pumps and parts. * This document is the property of RT^® Pump and can be neither reproduced nor disclosed to a third party without a written authorization
