Design Features:
Wetted Parts:

Impellers - wide variety of metallurgic and elastomeric options (metal and elastomer interchangeable) – pump out vanes on rear and front (on closed impellers) reduce recirculation within pump, and aid in preventing seal contamination - optional castings of straight or semi-Francis vanes (from 3 to 8 vanes on certain sizes) offer wider hydraulic options in single sizes

Liners - wide variety of metallic and elastomeric options (metal and elastomer liners are interchangeable) to select from in order to provide the longest wear life possible

 Seal Arrangements:

Expeller (Centrifugal Seal) – no external sealing water required where applicable

Stuffing Box - flushed gland sealing with braided packing and a lantern ring

Mechanical Seals


Bearing Assembly

Cartridge - style bearing housing allows for removal from pump and assembly in controlled environment

Oversized shaft diameters and reduced overhang in the wet-end contribute to long life and reliability in the field

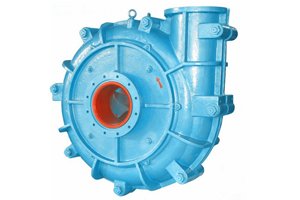

RT® 10/8 ST TH Slurry Pumps Performance Parameters:

Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller Vane No.
		Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)
10/8ST-TH	560	M	M	612~1368	11~61	400~850	71	4~10	5


RT® 10/8 ST TH Slurry Pumps Applications:
• wet crushers
• SAG mill discharge
• ball mill discharge
• rod mill discharge
• mineral processing
• coal prep
• cyclone feeds
• aggregate processing
• fine primary mill grinding
• chemical slurry service
• tailings
• secondary grinding
• industrial processing
• pulp and paper
• food processing
• cracking operations
• ash handling

 Note:

* RT® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.

* RT® 10/8 ST TH slurry pumps and spares are only interchangeable with Warman® 10/8 ST AH slurry pumps and spares.

* This document is the property of RT® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
