Victor Pumps - S Serisi Kendinden Emişli Pompalar

Recommended for corrosive and/or abrasive & viscous liquids, compatible with cast iron, bronze, aluminum or stainless steel, which can contain air.
The pump can be located above, on side or under the liquid. Some pump sizes can self-prime up to the physical limit of 8 m.
Available with various drives such as single phase, three-phase, explosion-proof motors and gasoline or diesel engine.
Produced in different versions depending on the specific application. For example Close coupled, Bi-Block, Classic. Also with ATEX Certificate.


The self-priming pump will evacuate all the air. The vacuum produced as the impeller rotates (2) draws air into (1) the pump where it is mixed with the liquid already contained in the pump casing.When all the air has been evacuated from the suction line the liquid is pumped, even if air-laden.	The air/liquid mixture is driven to the discharge side where the air separates out and is expelled through the discharge port (3) while the liquid, due to the higher gravity, falls back and is reused in the suction side through a small passage.	The high suction port keeps enough liquid inside the casing to allow re-priming any time. The check-valve in the suction port (4) avoids a backflow of the liquid and reduces priming time.

Suction and discharge ports are available flanged or threaded (up to 4”). The threaded port have through-holes to take away faster the pipes.
For easy installation, the DIN or ASA flanged ports have through-holes and ¼” threaded hole for Vacuum meter and manometer.
Check valve: avoids backflow of liquid from the discharge side and reduces priming times. Available in NBR, Viton® (FKM), PTFE & EPDM.

Maintenance-free ball bearings.
Mechanical seal in Sic/Viton® (FKM) with stainless steel shaft sleeve and lubrication behind the seal to improve dry running capabilities.
Heavy-duty open impeller and wear plate designed for abrasion and passage of solids. On request with cutting device for soft solids.

…and many more.

Construction

Stationary

Close coupled pump	Bi-Block with flanged ports	Bi-Block with flanged ports on base plate

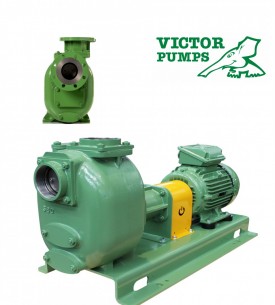

With hydraulic motor	Classic, with elastic coupling, guard and B3 electric motor on base plate	On tank frame

Mobile


On carrying frame	On trolley for flat ground	On trolley with 2 tractor profile wheels

On trailer with tank	On carrying frame for the emergency	On trailer with tank & 4 wheels for flat ground

On skid
