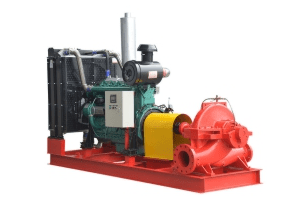

XBD-S Fire Pump
XBD-S fire pump is one of the new products developed according to market needs and national standard. As a professional fire pump, the pump is designed and manufactures through adopting the characteristic of hydraulic model and horizontal multi-stage pump.
The pump has the advantages of high efficiency, good cavitation performance, low vibration, low noise, and stable operation.
It is widely used in industrial and civil buildings and other types of fire fighting and domestic (production) water supply, and is used to transport liquids with physical and chemical properties similar to clean water.
The high temperature of the liquid should be lower than 80?, the pressure range of the XBD-S horizontal multi-stage fire pump set is 0.31-2.65Mpa, and the flow range is 5.0-45L/s.
Model Meaning
XBD 4.4/40-100-S-400A
XB: Fixed Fire Pump Set
D: Diesel Engine Drive
4.4: Pressure(1/10Mpa)
40: Flow(L/S)
100: Outlet Diameter(mm)
S: Single Stage Double Suction Pump
400: Impeller Diameter(mm)
A: First Cutting for Impeller

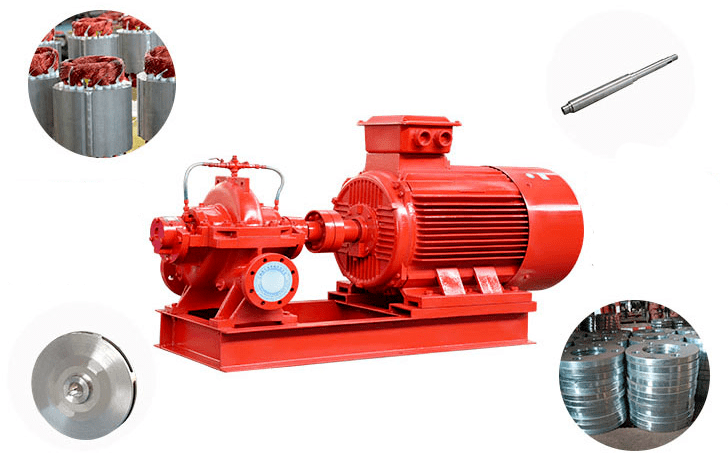

1)Pure Copper Coil
The motor adopts pure copper coil, having better conductivity and higher operating efficiency
2)Stainless Steel Shaft
The use of stainless steel shaft is anti- wear resistance and can increase the service life of the pump
3)Stainless Steel Impeller
The use of stainless steel impeller can strong corrosion resistance
4)High Quality Flange
The use of good quality flanges can enhance pressure resistance

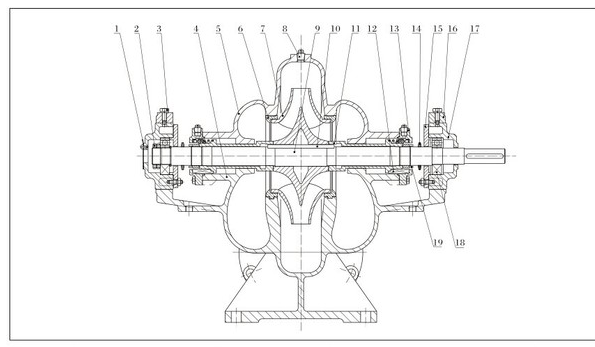

1. End Cap
2. Round Nut
3. Fixing Screws
4. Frame Plate
5. Pump Cover Plate
6. Double Suction Seal Ring
7. Impeller
8. Plug
9. Shaft
10. Shaft Key
11. Mechanical or Packing Seal Shaft Sleeve
12. Mechanical or Gland Packing Seal
13. Mechanical or Gland Packing Seal Cover
14. Water-Retaining Ring
15. Bearing Cover
16. Bearing Body Cover
17. Bearing Housing
18. Bearing
19. Shaft Sleeve Nut
