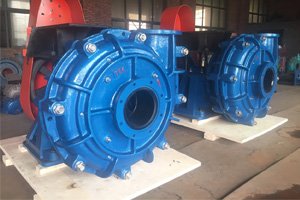

RT® 12/10 ST AHR Rubber Lined Slurry Pump Performance Parameters:

Model	Max. Power (kw)	Materials		Clear water performance					Impeller Vane No.
		Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)
12/10ST-AHR	560	Rubber	Rubber	720-1620	7-45	300-650	80	2.5-7.5	5

RT® Rubber Lined Slurry Pumps Sealing Arrangement:



Packing Seal

As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind

of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For

high abrasion conditions, a ceramic shaft sleeve is available.



Centrifugal Seal - Expeller

The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.



Mechanical Seal

AHR rubber lined heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for

various pumping applications.



We also utilize special ceramic and alloys of high strength and hardness on parts that are subjected to friction. Unique design of and seamless fit between the mechanical seal and seal chamber provides excellent resistance to abrasion and shock that ensures its effectiveness under the toughest conditions.



Materials of Construction:

MAIN PARTS	LINERS	IMPELLERS	CASING	BASE	EXPELLER	EXPELLER RING	SHAFT SLEEVE	SEALS
Standard	Natural Rubber	Natural Rubber	SG Iron	SG Iron	Chrome Alloy	Chrome Alloy	SG Iron	Rubber
Options	Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Viton Nitrile EPDM Hypalon	Ferralium Hastelloy C 316 SS W151 Polyurethane Neoprene Butyl Nitrile Hypalon	SG Iron Various grades	MS Fabricated Cast Iron	NI Resist Ferralium Hastelloy C Polyurethane 316 SS W151	NI Resist Ferralium Hastelloy C 316 SS Rubber W151 Polyurethane Neoprene Butyl Nitrile	EN56C Ferralium Hastelloy C Titanium 316 SS 304 SS	Ceramic Stellite Chrome Oxide Nordel Neoprene Viton

  Note: * RT^® is a registered trademark and does not represent or is not in any way affiliated with Warman^® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps. * RT^® 12/10 ST THR rubber lined slurry pumps and spares are only interchangeable with Warman^® 12/10 ST AHR rubber lined slurry pumps and spares. * This document is the property of RT^® Pump and can be neither reproduced nor disclosed to a third party without a written authorization.
