VERTICAL CHEMICAL PUMPS

CORROSION-RESISTANT VERTICAL PUMPS

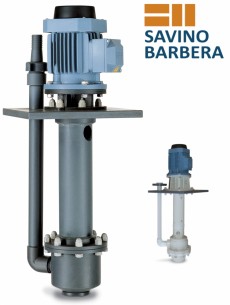

Vertical centrifugal pumps made of corrosion-resistant plastic (PP, PVC, PVDF). Construction in customised lengths makes them perfect for any depth while their plastic-coated pump shaft, built in one piece without intermediate supports, withstands all chemical attack. The use of vertical-axis pumps eliminates the need for openings in the bottom of the tank and allows the pumping of acids in absolute safety.

ÜCRETSİZ TEKLİF AL

	AS SERIES: CUSTOM-MADE AS Series vertical pumps. Without standard lengths, they can be adapted to suit any tank with a maximum depth of 3 metres. Equipped only with a pair of bushings flushed by the liquid being pumped. Max flow rate: 90 m³/h. Max head: 55 m w.c. Plastic construction materials: PP, PVC, PVDF.
	GP SERIES: HIGH FLOW RATES GP Series vertical pumps. Machined from a solid block of polypropylene, these are very robust chemical pumps ideal for heavy-duty and continuous operations. Maximum length: 3000 mm. Max flow rate: 200 m³/h. Max head: 42 m w.c. Plastic construction materials: PP.
	BS SERIES: WITH NO BUSHINGS BS Series vertical pumps. Cantilever pumps with no sliding parts. For pumping abrasive corrosive liquids or those with a tendency to form scale. Made in standard lengths: 400, 550, 700, 90 mm. Max flow rate: 55 m³/h. Max head: 30 m w.c. Plastic construction materials: PP, PVC, PVDF
	GA SERIES: FOR DIRTY LIQUIDS GA Series vertical pumps. With anti-clogging impellers and large internal spaces, they can pump even very dirty corrosive fluids (containing filaments, solids or other impurities). Available with and without bushings. Max flow rate: 32 m³/h. Max. head: 20 m w.c. Construction materials: PP, PVC, PVDF.
